Inside the Las Vegas Sphere: The Next Generation of Immersive Entertainment
The Las Vegas Sphere stands as a landmark shift in live entertainment. Opened in September 2023 at a cost of $2.3 billion, this project by Sphere Entertainment Co. (formerly Madison Square Garden Company) merges unprecedented hardware engineering with spatial computing to redefine visual and acoustic storytelling.
The Architectural Canvas: Exterior & Atrium Tech

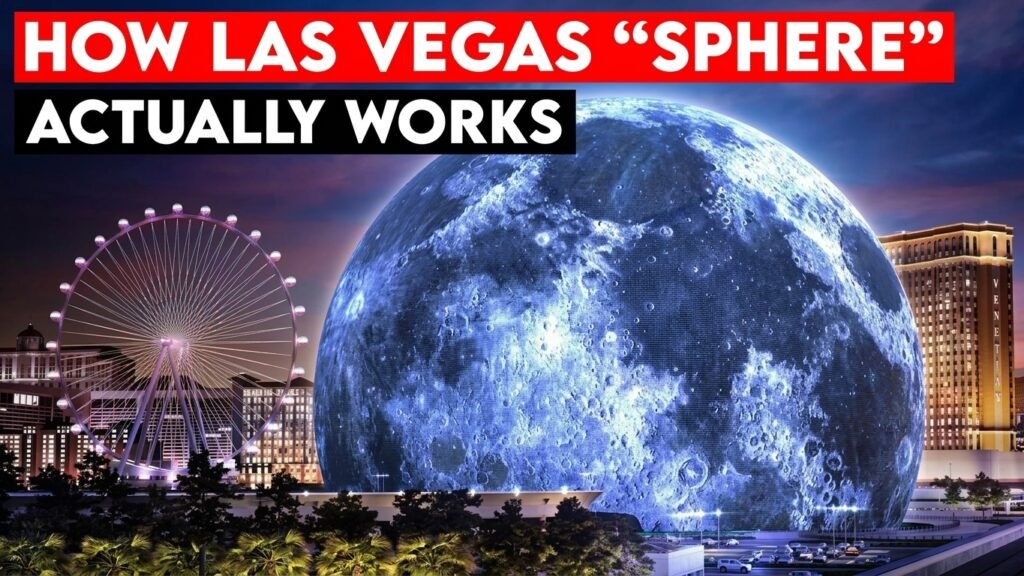

The spectacle begins on the outside with the Exosphere, currently the world’s largest LED display plane.
┌─────────────────────────────────────────────────────────────┐
│ THE EXOSPHERE │
│ - 580,000 sq ft surface area │
│ - 1.2M individual LED pucks (~48 diodes/puck) │
│ - Programmed as a seamless, macro-scale pixel array │
└─────────────────────────────────────────────┬───────────────┘
│
▼
┌─────────────────────────────────────────────────────────────┐
│ ATRIUM & ENTRY │
│ - Hypervsn Holographic Walls (670 RPM LED Rotors) │
│ - "Aura" Humanoid AI (Powered by LLMs & Spatial Sensing) │
└─────────────────────────────────────────────────────────────┘
The Exosphere: Covering 580,000 square feet, the exterior features 1.2 million individual lighting pucks spaced across its shell. Each puck houses a cluster of 48 individual LEDs, acting as macro-pixels that allow the entire structure to render dynamic 360-degree graphics.
Hypervsn Holographic Displays: Atrium walls feature high-speed rotating LED rays spinning at 670 RPM. This creates a persistent-of-vision optical illusion, floating 3D graphics in mid-air without requiring physical screens.
Aura the Humanoid Robot: Visitors interact with Aura, an advanced humanoid platform developed by Engineered Arts. Integrated with large language models, computer vision, and facial recognition, Aura conducts fluid, context-aware conversations.
Main Performance Venue: Display & Spatial Audio
Inside the main bowl, the venue utilizes a custom-engineered display and a beamforming acoustic array.
| Spec Category | Technological Standard | Performance Details |
| Interior Screen | 16K x 16K Wraparound LED | 256 million pixels, world’s highest resolution interior display plane. |
| Spatial Audio | Holoplot Wave Field Synthesis | 167,000 speaker drivers utilizing acoustic beamforming to deliver targeted, localized audio streams. |
| 4D Sensory Array | Haptic Seats & Environmental FX | 10,000 haptic seats synchronized with infrasound, variable wind, thermal cues, and scent generators. |
Beamforming Audio Mechanics
Unlike traditional line-array sound systems, the venue’s audio engine uses Wave Field Synthesis behind the acoustically transparent display. By calculating wave interference patterns in real time, sound engineers can project focused “pencil beams” of audio to specific seats. This allows simultaneous multi-language dialogue delivery or distinct atmospheric tracks to different sections of the audience without cross-bleed.
Cinematic Production: The “Big Sky” Camera
To produce content natively for a 16K x 16K dome, traditional cinema cameras were insufficient. Sphere Studios engineered a custom camera system named Big Sky.
┌─────────────────────────────────────────────────────────────┐
│ BIG SKY CAMERA SYSTEM │
│ │
│ [ Custom Fisheye Lens ] ──► [ 316MP CMOS Image Sensor ] │
│ (165° Field of View) (18K x 18K Resolution) │
│ │ │
│ ▼ │
│ [ 60 GB/s Data Pipeline ] │
│ │ │
│ ▼ │
│ [ Dual 32TB SSD Media ] │
└─────────────────────────────────────────────────────────────┘
Custom 316MP Sensor: Features a single $3\text{“} \times 3\text{“}$ CMOS image sensor capable of recording native 18K square format footage at up to 120 frames per second.
Extreme Bandwidth: Captures uncompressed RAW video generating up to 60 Gigabytes of image data per second, requiring dedicated fiber-optic offloading arrays on set.
Custom Optics: Uses a single dedicated ultra-wide fisheye lens, eliminating the need to stitch multi-camera arrays together and avoiding edge distortion or parallax errors across the dome screen.
Production Impact
By uniting custom high-throughput recording hardware with physical 4D sensory feedback, the Las Vegas Sphere shifts the live entertainment industry from flat-screen viewing into a fully realized spatial format.
