The Geographic Challenge: Conquering Sydney Harbour

Sydney’s world-famous harbors have long defined its iconic aesthetic, but for urban planners, they present a major geographic hurdle. The natural body of water creates a strict divide between the city’s Northern and Southern shores, creating persistent traffic bottlenecks for commuters.

Throughout its history, Sydney has met these environmental barriers head-on through ambitious engineering feats:

• The Sydney Harbour Bridge (1932): The original landmark structure that physically linked the Northern and Southern shores with its massive steel arch.

• The Sydney Harbour Tunnel (1992): A subsea dual carriageway built to relieve growing vehicular traffic directly beneath the harbor’s floor.

• The Sydney Metro (Present): The next generation crossing—moving away from heavy road traffic and traditional rail toward a fully automated, high-frequency underground network.

Breakdown of the Four Sydney Metro Delivery Phases

To execute a project of this unprecedented scope, project planners structured the network extension across four distinct phases.

Phase 1: Sydney Metro Northwest (Completed)

Becoming fully operational in May 2019, Phase 1 served as the critical proof-of-concept for driverless rail in Australia. Spanning 36 kilometers of track from Chatswood out to Rouse Hill, it brought 15 kilometers of twin-bore tunnels and 13 operational stations to Sydney’s rapidly developing outer north-west suburbs.

The successful delivery of the Northwest line laid the foundational systems, depot management facilities, and signaling protocols necessary to validate expanding the driverless footprint across the remainder of the city.

Phase 2: Sydney Metro West

Representing an estimated $25 billion investment, Phase 2 focuses entirely on the critical east-west economic spine of Greater Sydney.

Parramatta (Second CBD) ---> Olympic Park ---> The Bays Precinct ---> Sydney CBD

Parramatta is quickly evolving into Sydney’s commercial and cultural second downtown. By laying 24 kilometers of underground metro track directly connecting Parramatta to the primary Sydney CBD, Phase 2 will cut standard commute times in half while doubling overall rail capacity along this high-density corridor.

Phase 3: Western Sydney Airport Link

Set to open in alignment with the brand-new Western Sydney International (Nancy-Bird Walton) Airport, Phase 3 represents an $11 billion infrastructure build.

With the new international terminal projected to process over 10 million annual passengers, integrating dedicated mass transit early is vital. This 23-kilometer rail spur links existing outer suburban lines at St Marys directly to the airport terminal and the surrounding Aerotropolis, driving immense commercial development across Western Sydney.

Phase 4: City & Southwest – The Project’s Engineering Masterpiece

The most complex operational undertaking of the network belongs to Phase 4: Sydney Metro City & Southwest. This leg converts 11 legacy stations along the old Bankstown line to handle automated rolling stock while driving a new 15.5-kilometer twin tunnel alignment straight through the central business district and beneath Sydney Harbour itself.

Engineering Marvel: The Victoria Cross Station Cavern

Located deep beneath North Sydney, engineers excavated Australia’s largest underground railway cavern at Victoria Cross Station.

       SURFACE LEVEL / NORTH SYDNEY STREETS
===================================================
  |                                             |
  |  Depth: ~40 Metres Underground              |
  |                                             |
  v                                             v
+-------------------------------------------------+
|          VICTORIA CROSS STATION CAVERN          |
|                                                 |
|  * Length: 265 Metres                           |
|  * Width:  25 Metres                            |
|  * Height: 20 Metres                            |
+-------------------------------------------------+

Carved out of solid bedrock, this mammoth subterranean space houses multi-level mezzanine floors, massive high-speed escalator banks, and polished platform zones designed to seamlessly transfer thousands of commuters per hour out of the deep earth up to surface level.

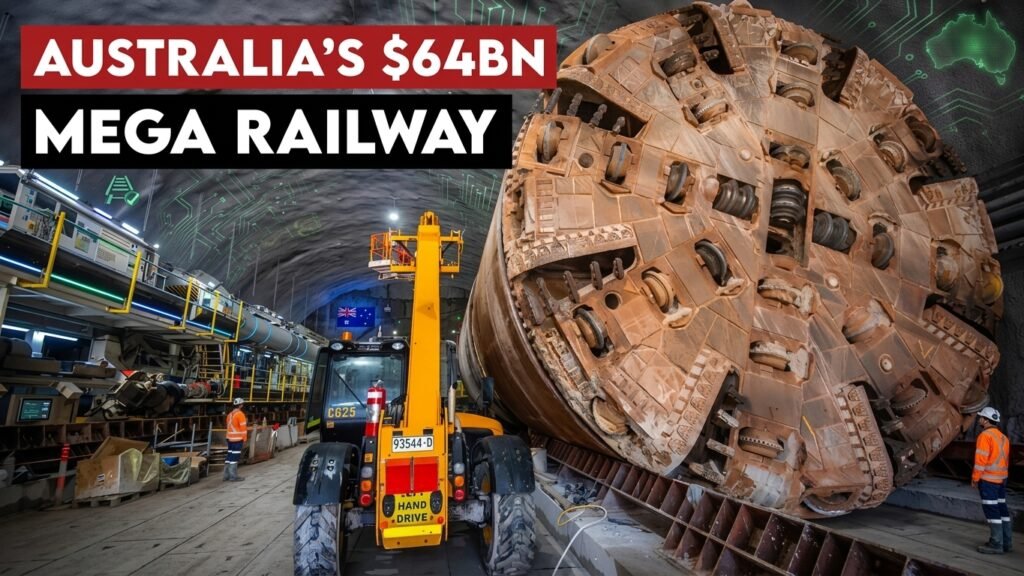

Under the Harbour: The Fleet of Subterranean Tunnel Boring Machines

Navigating Sydney’s complex geotech landscape required a specialized fleet of massive Tunnel Boring Machines (TBMs).

Across the entire program, 16 individual TBMs have been deployed beneath the city:

• Weight: Over 1,100 tonnes each

• Length: Up to 120 meters long

• Operational Depth: 35 to 58 meters below street level

• Average Pace: ~120 meters per week through rock six times harder than standard concrete

Navigating the Seabed: Slurry TBM Technology

To cut through the variable silt, clay, and dense Hawkesbury sandstone forming the floor of Sydney Harbour, engineers deployed a specialized Slurry TBM. By pumping liquid fluid directly to the cutter head face, the machine safely balanced external hydrostatic water pressure, allowing crew members to bore 40 meters below the harbor surface without risk of collapse or water ingress.

By the time the system expansion reaches completion, these TBMs will have excavated well over 56 kilometers of combined subterranean tunnels—a distance greater than the English Channel crossing between Dover and Calais.
